| Size | 95mm, 98mm, AG |
|---|---|
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm |
| Color | A1, A2, A3, A3.5, A4, B1, B2, B3, B4, BL1, BL2, BL3, BL4, C1, C2, C3, C4, D2, D3, D4, OM1, OM2, OM3 |
Leveraging an advanced 8-layer multi-layered gradient technology, 4D PRO Zirconia delivers exceptionally natural aesthetics and robust performance. It features precisely engineered, seamless transitions across:
ZirArt 4D Series is the best choice for a permanent denture, a perfect balance of beauty and durability.
| ZirArt 3D Series |  |
|
 |
|---|---|---|---|

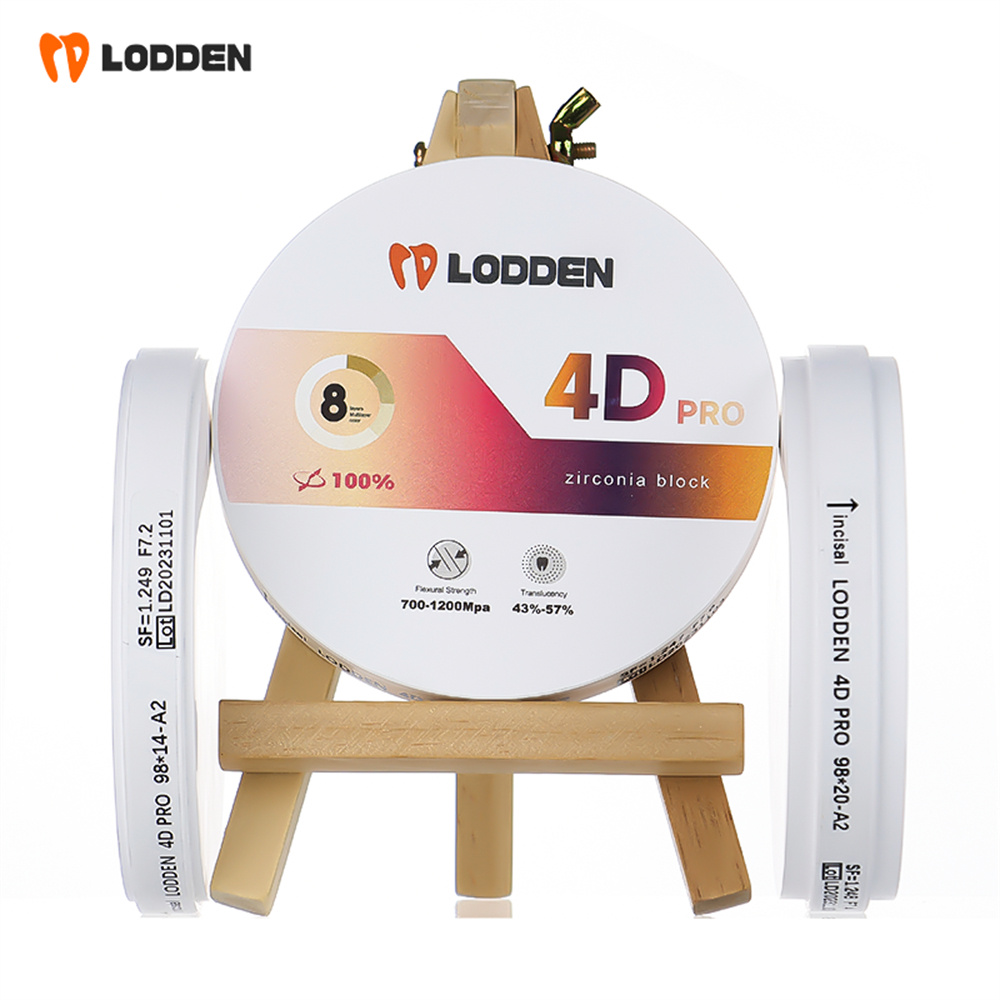

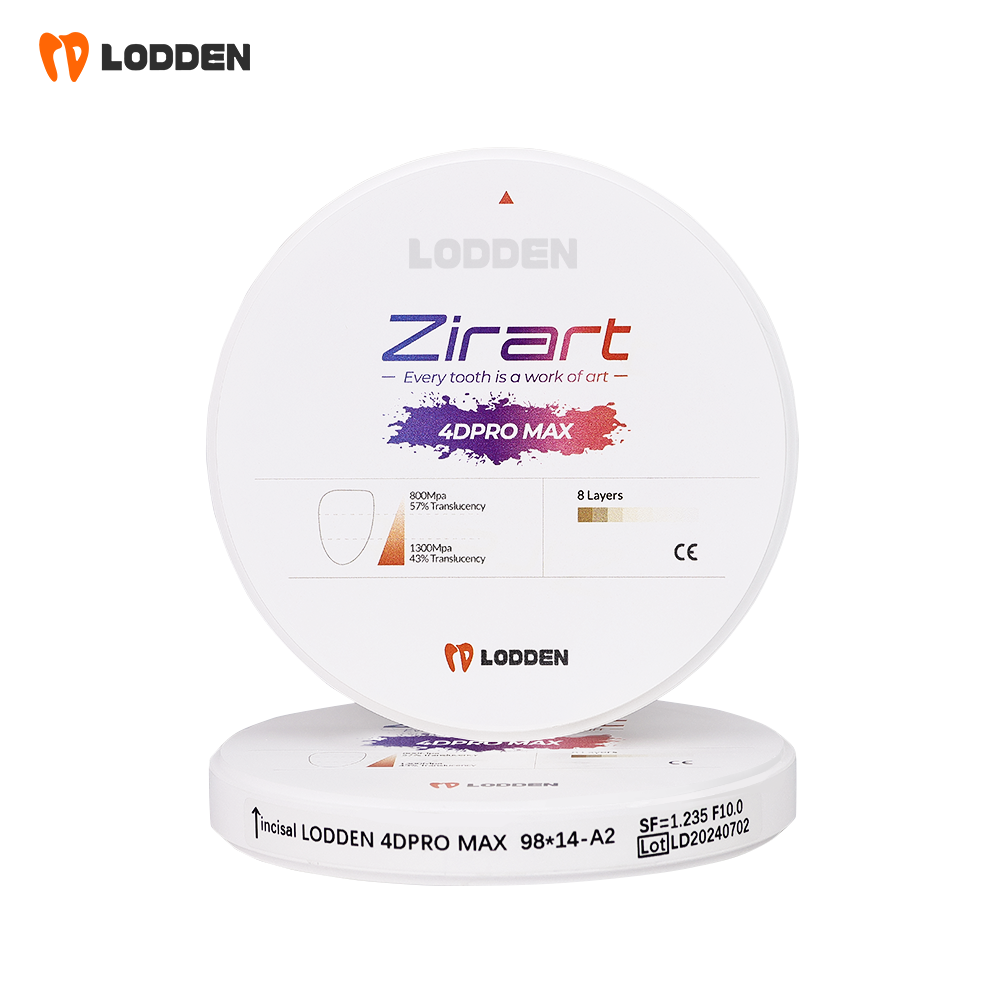

| Model | 4D PRO | 4D PRO MAX | 4D MASTER |
| Layer | 8 Layers | ||
| Ingredients | Sinocera | Sinocera | Tosoh |
| Size | 98mm, 95mm, AG | ||
| Thickness | 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm | ||
| Translucency | 43%-57% | ||
| Strength | 700-1200MPa | 800-1300MPa | |
| Color | VITA16+BL1+BL2+BL3+BL4 | VITA16+BL1+BL2+BL3+BL4+OM1+OM2+OM3 | |
LODDEN Offers high flexibility in ordering, choose the exact size needed for each specific restoration, minimized waste directly translates to reduced denture CAM material costs.
| Crown Thickness≤0.5mm | ||||
|---|---|---|---|---|
| Sintering Step | Start Temperature(°C) | End Temperature(°C) | Time(Min) | Rate(°C/min) |
| Step 1 | 20 | 1300 | 45 | 30 |
| Step 2 | 1300 | 1300 | 20 | 0 |
| Step 3 | 1300 | 1500 | 25 | 8 |
| Step 4 | 1500 | 1500 | 85 | 0 |
| Step 5 | 1500 | 20 | / | Natureal Cooling |
| Crown Thickness≥0.5mm | ||||
|---|---|---|---|---|
| Sintering Step | Start Temperature(°C) | End Temperature(°C) | Time(Min) | Rate(°C/min) |
| Step 1 | 20 | 1300 | 65 | 20 |
| Step 2 | 1300 | 1300 | 20 | 0 |
| Step 3 | 1300 | 1530 | 35 | 7 |
| Step 4 | 1530 | 1530 | 120 | 0 |
| Step 5 | 1530 | 20 | / | Natureal Cooling |
| Long Bridge, Implent Brown, Full Arch | ||||
|---|---|---|---|---|
| Sintering Step | Start Temperature(°C) | End Temperature(°C) | Time(Min) | Rate(°C/min) |
| Step 1 | 20 | 1300 | 65 | 20 |
| Step 2 | 1300 | 1300 | 20 | 0 |
| Step 3 | 1300 | 1500 | 30 | 7 |
| Step 4 | 1500 | 1500 | 120 | 0 |
| Step 5 | 1500 | 20 | / | Natureal Cooling |
