Accommodates adults and children Anti-fogging
Scan Area: 15x15mm
Scan Area: 12x12mm

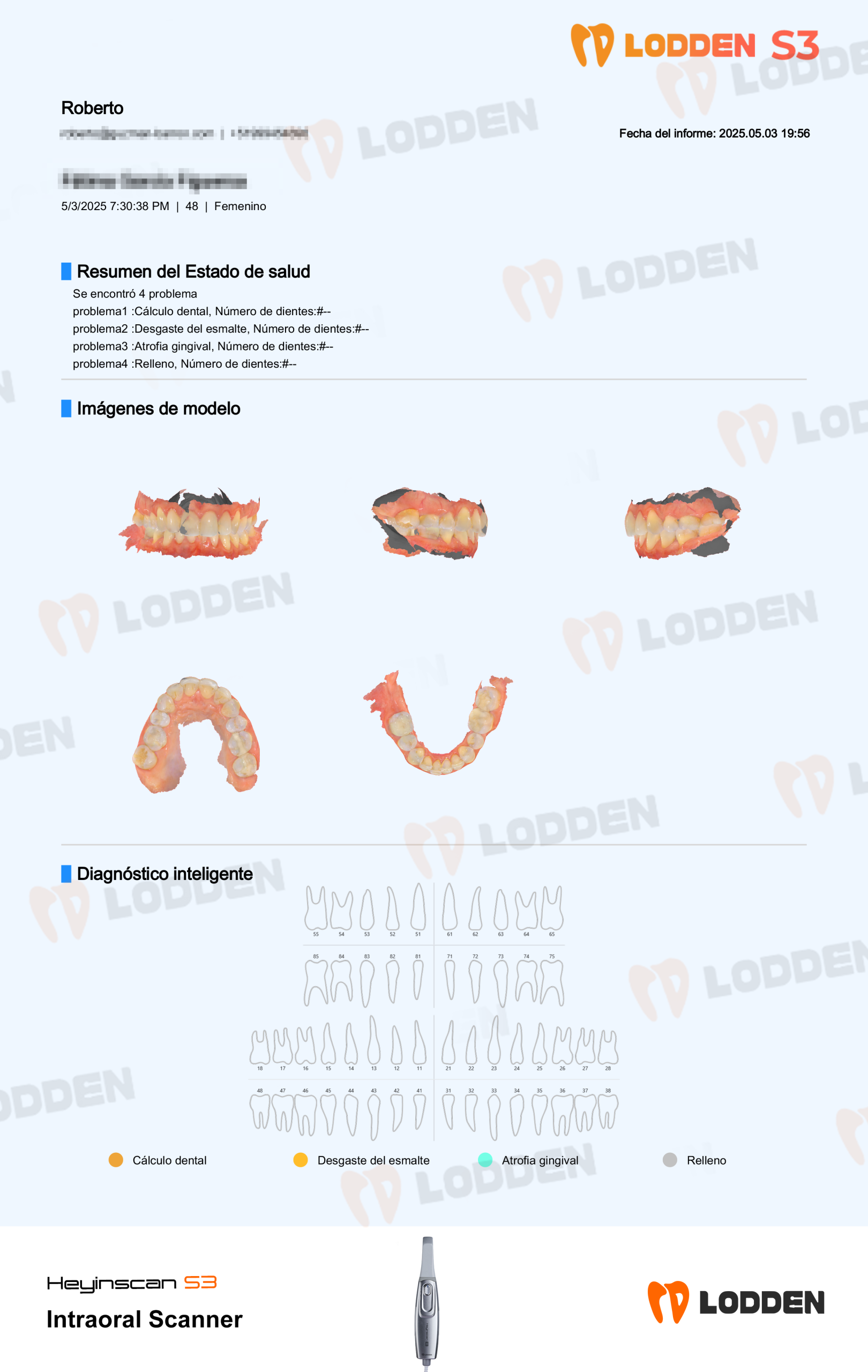

Available on windows, android and IOS/MAC real-time cloud synchronization images and reports captured.

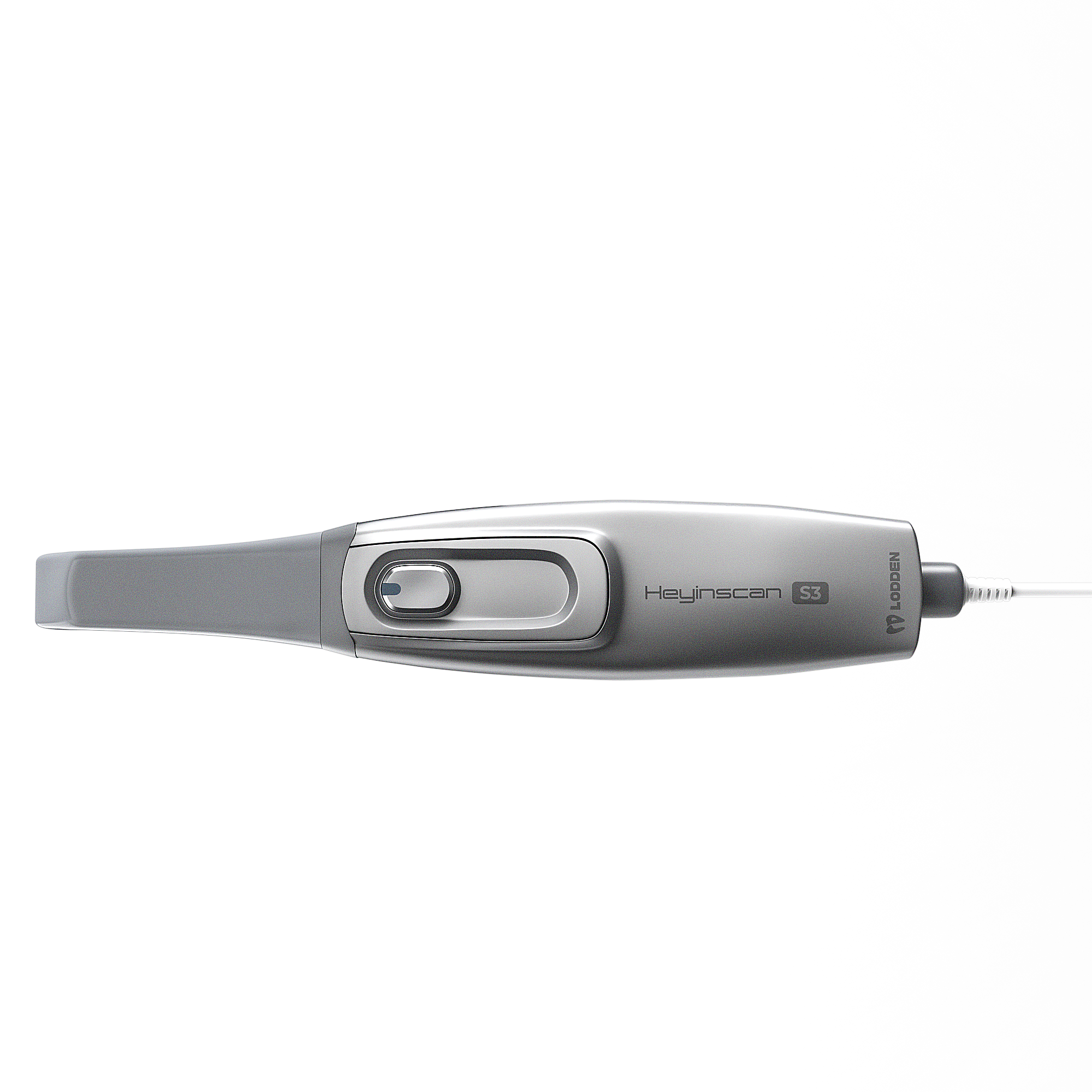

| Heyinscan S3 Intraoral Scanner Specifications | ||
|---|---|---|
| Scanner | Dimension(L*W*H) | 240mm*49.5mm*30.5mm |
| Weight | 210g | |
| Tip | Tip Size | Standard Tip: 79mm*19.7mm*15.8mm Mini Tip: 80mm*16mm*11mm |
| Scan Area | Standard Tip: 15mm*15mm Mini Tip: 12mm*12mm |
|
| Scan Depth | 15mm | |
| Autoclavable | Up to 100 times (121°C 6mins/134°C 4mins) |
|
| Accuracy | Crown | <10μm |
| Full Arch | <20μm | |
| Scan Speed | Single Arch | 30s |
| Full Arch | 90s | |
| Calibration | Calibration Free | |
| Output | STL, OBJ, PLY | |
| Connector | USB 3.0 | |
| Languages | Chinese, English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Janpanese, Korean. | |
| Recommended PC Configuration | ||
|---|---|---|
| Category | Laptop | Desktop |
| CPU | Inter Core i7-11700H | Inter Core i7-11700 |
| RAM | 16Gb or Higher | |
| Graphic Card(GPU) | NVIDIA ® RTX 3060 6GB or Higher (Not Support AMD Graphic Cards) |
|
| Hard Disk Drive | 256 GB SSD or above | |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems | |
| Screen Resolution | 1920×1080, 60 Hz or Higher | |
