Grand launch of a series of dental 3D scanners. Ingenious design, with excellent performance to meet the efficiency and precision needs of technicians in all scenarios.
DS Series Dental Desktop 3D Model Scanner employs advanced, pre-set algorithms specifically engineered for the challenging variety of common dental materials (plaster, metal, wax, articulators). It automates crucial data processing steps—mesh cleaning, hole filling, data compression, and noise removal.

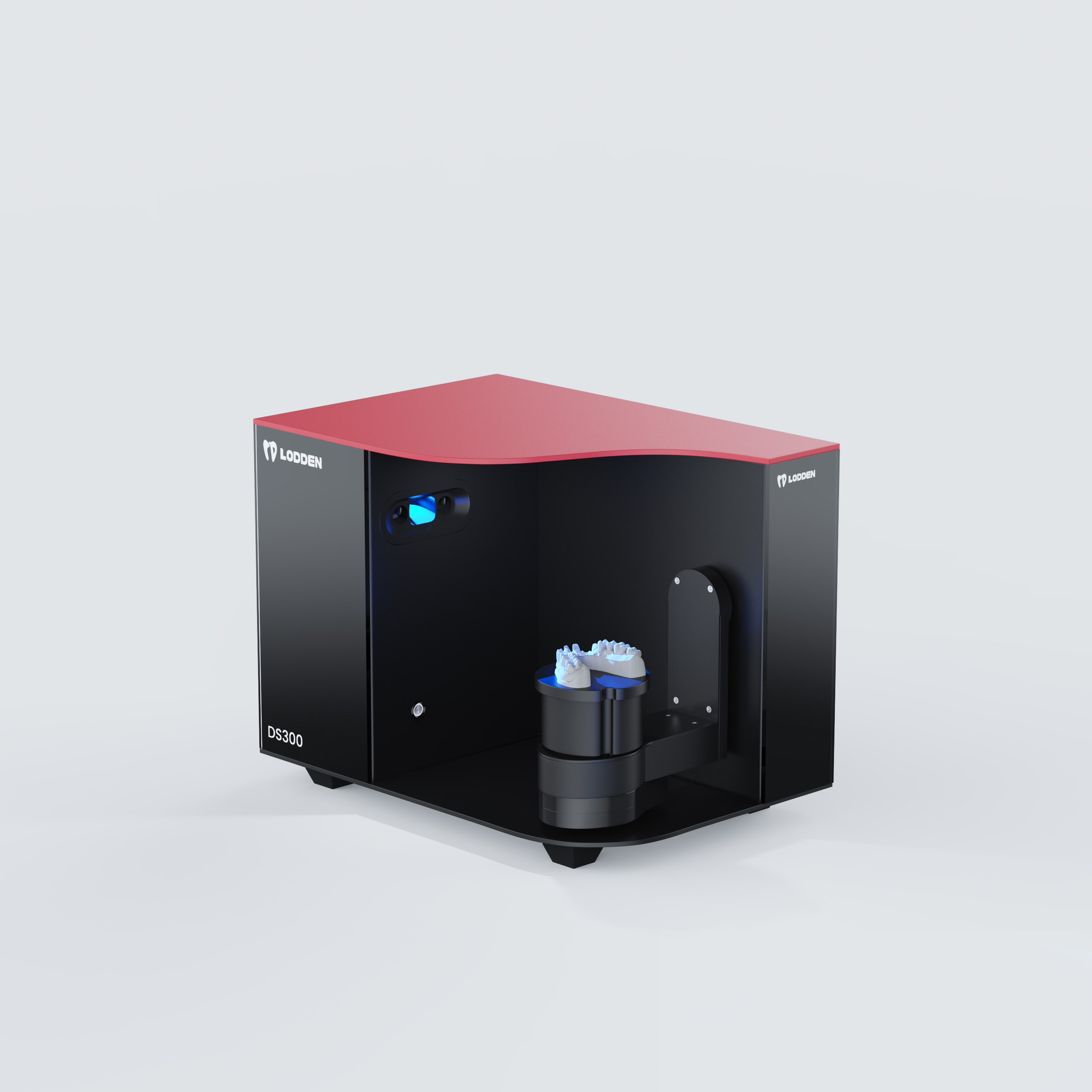

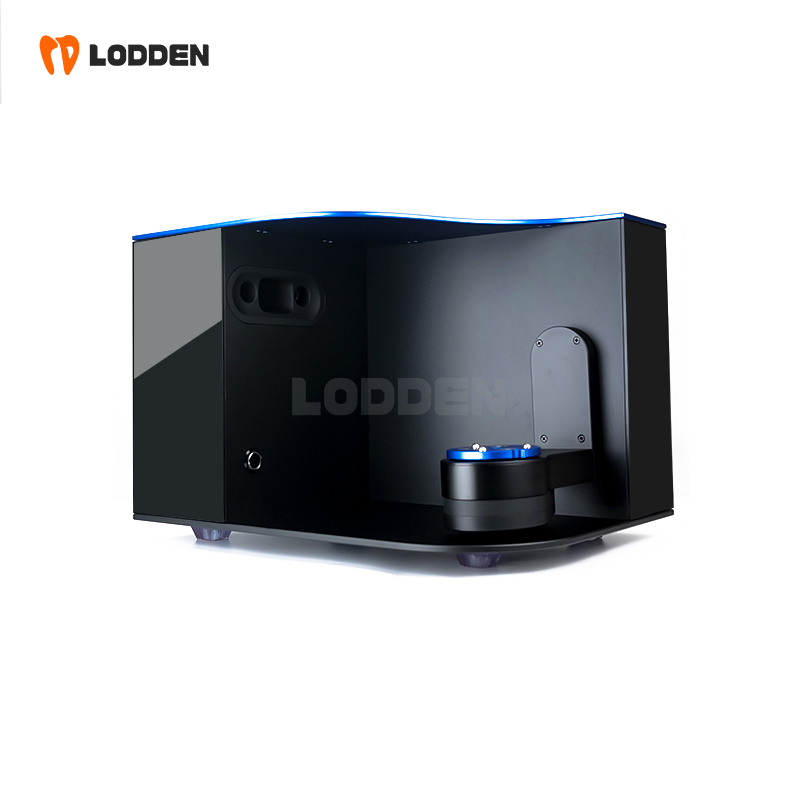

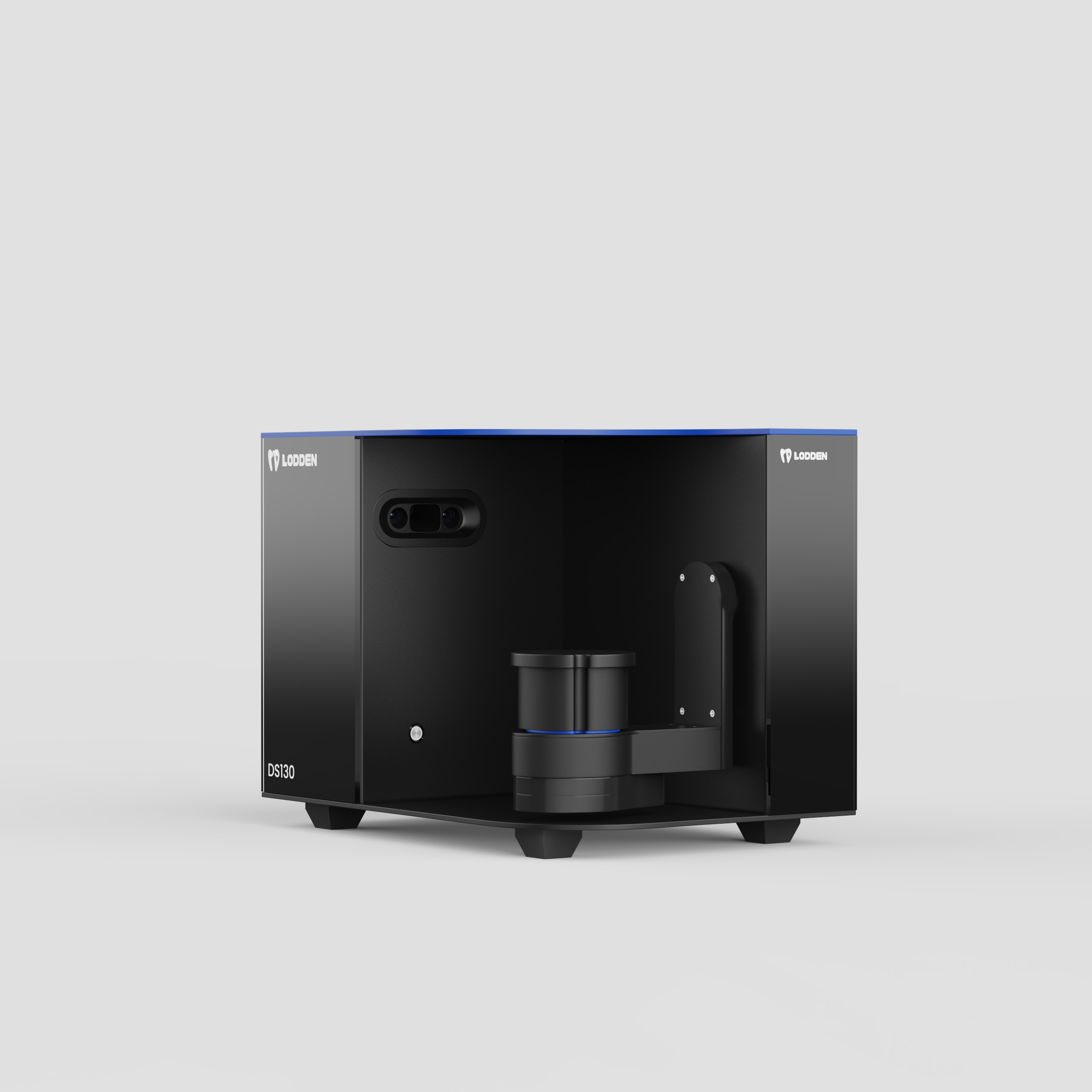

DS Series Dental 3D Model Scanner integrates Dual High-Precision Cameras boasting 5MP Ultra-High-Definition resolution. Leveraging the latest Structured Blue Light 3D Scanning Technology, it achieves a verified precision of 5μm (0.005mm) or lower(certified ISO 12836 standard). Engineered for efficiency, the combination of a fully automatic rotating platform and high-speed intelligent algorithms allows for an unprecedented full dental arch scan in as little as 13seconds, with full texture mapping completed in 29seconds.
DS Series Dental Desktop 3D Model Scanner software is a true multi-platform solution, offering universal compatibility across Android, Windows, iOS, and Mac operating systems. It features direct cloud connectivity via Wi-Fi, enabling flexible and modern digital operations. The design emphasizes streamlined workflow and usability, offering one-click functionality for critical tasks such as system calibration and initiating the scanning process. To ensure maximum flexibility within the digital laboratory, the software supports one-click data export into the industry-standard formats of .stl, .ply, and .obj, guaranteeing seamless integration and compatibility with virtually all major CAD software platforms.
|
|
|
|
|---|---|---|---|
| Model | DS130 | DS 300 | DS 500 |
| Camera Resolution | 2*1.3MP | 2*3.0MP | 2*5.0MP |
| Accuracy | 7μm(ISO12836) | 5μm(ISO12836) | 5μm(ISO12836) |
| Full Arch Scan Speed | 11s | 13s | 13s |
| Full Arch Impression Scan Speed | 27s | 29s | 29s |
| Scan Area | 106mm*84mm*60mm | 94mm*89mm*60mm | 94mm*89mm*60mm |
| Dimension | 393mm*271mm*274mm | ||
| Weight | 9kg | ||
| Package Weight | 14kg | ||
| Package Size | 50*40*40cm | ||
| Output Format | .STL, .PLY, .OBJ | ||
| Light Source | Blue Light | ||
| Texture Scanning | True Colour Scanning | ||
| Power Supply | DC 24V | ||
| Interface | USB 3.0 | ||
| Articulator Scan | Dynamic/Static Support Articulator Transfer |
||
